文章来源 : 广东优科检测 发表时间:2022-10-14 浏览数量:
UL1977是用于数据、信号、控制和电力应用中使用的连接器UL认证标准,连接器UL1977认证需要进行温升测试。UL1977温升测试是测试连接器在通最大额定电流情况下部件的温度变化情况,以确定连接器工作时可被接触到的部分,是否存在温度过高造成人身伤害的风险。

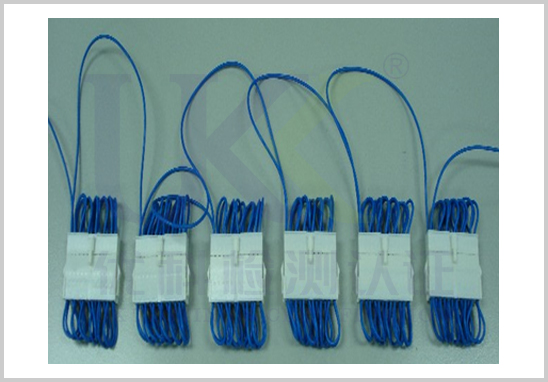

6个新样品
- The temperature measurement is to be made on the wiring terminals of each device
温升测试点应布在接线端子上
- The test is to continue for 4 hours even if stabilized temperatures are attained in a shorter period of time
最少连续运行4个小时,即使温度在很短的时间内稳定
- Three consecutive readings, taken at 5 minute intervals indicate no further rise above the ambient temperature
三次连续读数,每次间隔5分钟
- All contacts are to be connected in series so as to carry the same test current.
所有的端子需要串成一个回路来通相同的电流
- Tested at a draft-free area having an ambient temperature of 25 ±5°C (77 ±9°F)
测试的环境温度应保持在25 ±5°C (77 ±9°F)
- The measured temperature shall not exceed the Relative Thermal Index (electrical) of the insulating material
UL:最高温度不能超过塑料的RTI (Elec.) 值
UL+CUL:温升不能超过30K。
优科检测认证是具备UL1977免目击测试实验室授权的UL认证机构,可提供连接器UL1977认证、UL预测试服务,认证过程自主可控,免重测费,缩短测试周期,帮您快速完成对应产品的全球认证检测一条龙服务。
